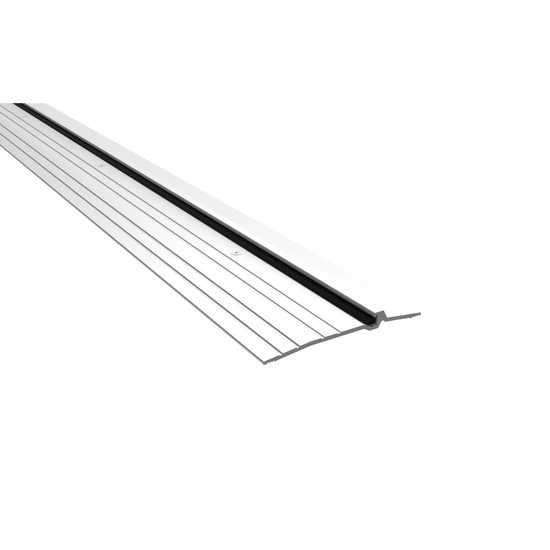

Pemko 2005AV72 72" 6' x 5" x 1/2" Latching Panic Exit Saddle with Vinyl Mill Finish Aluminum Finish

This latching panic saddle threshold seals the gap between door and frame on commercial exit doors equipped with panic hardware. Installed at the base of the door frame, it blocks air infiltration, wind, and debris while providing a 3/8" door clearance for smooth operation. The Pemko 2005AV72 features integrated vinyl gasketing that compresses when the door closes, creating an effective weather seal for high-traffic emergency exits.

The 5" width accommodates surface-applied vertical rod exit devices while acting as both door stop and seal. The mill finish anodized aluminum construction withstands heavy use in commercial applications. Compatible with IBC panic hardware requirements for assembly and educational occupancies that need weatherized emergency exits.

Material	Anodized Aluminum with Vinyl Gasket
Dimensions	72" x 5" x 1/2"
Door Clearance	3/8"
Mounting	Hardware Included
Warranty	5 Years Limited

Meets UL 10C positive pressure testing for fire-rated door assemblies, ASTM E283 air infiltration standards, and ANSI/BHMA A156.21 threshold requirements. ADA compliant design ensures accessibility while maintaining weatherization performance.
